水過濾器主要用于紡織廠空調室中循環水的過濾和各行業制冷站冷凍循環水的過濾?？捎行У亟鉀Q噴嘴堵塞和防止制冷機熱交換器換熱管的堵塞。

　　LF型反沖式水過濾器由機架、回轉式濾網、反沖水管、集污裝置、傳動變速機構等組成，傳動部件產品采用尼龍銷齒傳動。含有雜質的水穿過濾網，雜質被留在濾網的表面，當濾網轉到反沖水管出口的位置時，雜質被反沖水沖離濾網表面，隨轉動的毛刷進入集污裝置，由人工定期清除。經過濾網過濾后，清水由轉籠內流出，被水泵吸水管吸走。

　　水過濾器安裝時，水平放置，出水口朝向清水池，機架與水池墻體密封，水位線剛浸沒中心進水管。

Water filter is mainly used for circulating water filtering in air conditioning system of textile mills or freezing circulating water filtering of refrigerator in all industries. The application of water filter can prevent spraying nozzle blockage and heat pipe blockage of heat exchanger in refrigerators.

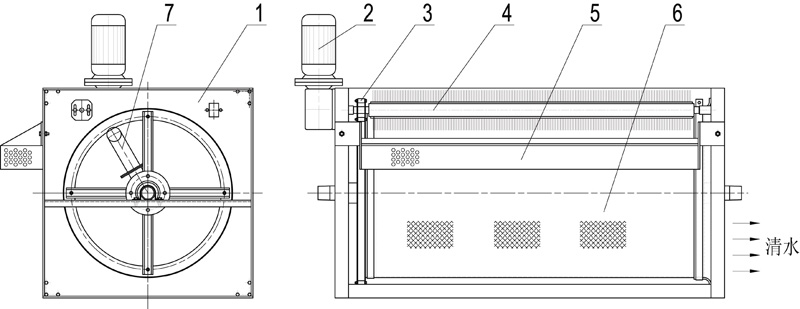

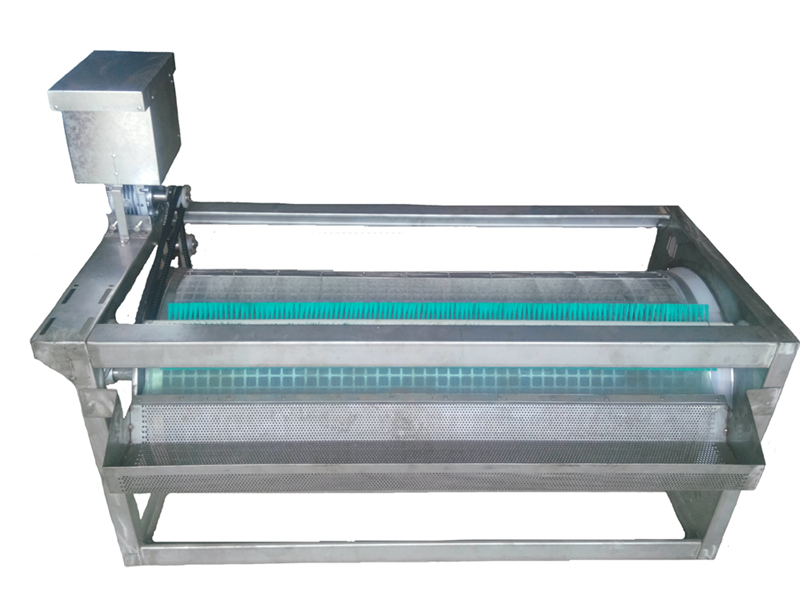

LF model back purge water filter consists of engine frame, rotary screen, back purge water pipe, collecting tank and transmission shifting mechanism etc. Transmission shifting mechanism is realized by nylon pin wheel driving. Impure water runs through filtering screen, and impurities are filtered onto screen surface. Then dirty screen turns towards back purge water pipe, which is applied to wash away impurities. The impurities are removed into collecting tank by brush. Collecting tank needs to be cleaned regularly to ensure normal use. Filtered water runs out of screen filter cylinder and will be pumped away for further use.

Water filter should be installed horizontally with water outlet towards pool for filtered water storage. Make sure there is no leakage of engine frame and pool wallboard. The waterline is appropriate if it can just immerse center water inlet pipe.

LF型反沖式水過濾器性能參數  LF Model back purge water filter
